Brand Name: Performance Fuel Systems
Manufacturer Part Number: PFSFP-2020

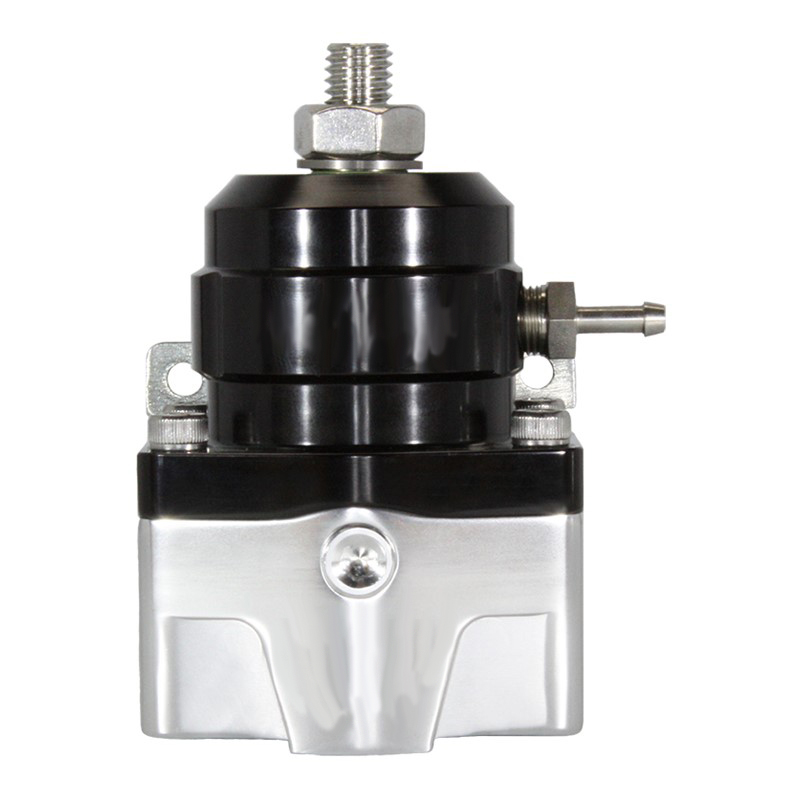

Performance Fuel Systems EFI Fuel Bypass Regulator -10 ORB - FP-2020

Name: Performance Fuel Systems EFI Fuel Bypass Regulator -10 ORB - FP-2020
Price: 142.99 USD
Availability: InStock

Our performance EFI regulator is designed for high horsepower applications. It features a high flow design and excellent pressure control and is specifically designed to be the best high pressure and EFI regulator.

Fuel pressure tracks boost at 1:1 ratio

40-75PSI adjustment range (maximum)

1/8" NPT gauge port with plug
2 x -10 ORB inlet ports
1 x -6 ORB return port
5mm Allen adjustment screw with 17mm lock nut
1 x 5/32" barbed vacuum /boost port (1/8" FPT internal thread)
Mounting bracket
Stainless Hardware

$ 142.99

Add to cart

Buy now

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Internal Reference: PFSFP-2020

Specification

Construction

Billet Aluminum

Finish

Black Anodized

InletPortSize

1 x -6 ORB

OutletPortSize

2 x -10 ORB

RegulatorType

Bypass/Return Style

AdjustmentType

Adjustable

FuelSystemType

Electronic Fuel Injection (EFI)

PressureRange

35-70 PSI (typical)

BoostReference

Yes, 1:1 boost/vacuum reference

Mounting

Universal

Application

EFI Fuel Systems

Description

The Performance Fuel Systems EFI Fuel Bypass Regulator FP-2020 features a robust billet aluminum construction and is designed for precise fuel pressure control in high-performance EFI applications. Equipped with one -6 ORB inlet and two -10 ORB outlet ports, this return-style regulator is ideal for custom setups requiring reliability and adjustability. It supports a wide pressure range, making it suitable for boosted or naturally aspirated engines. The compact design allows for flexible installation while ensuring consistent fuel delivery under demanding conditions.

Disclaimer

Product images and descriptions are for reference only. Actual product may vary. Always verify fitment and compatibility before purchase.
