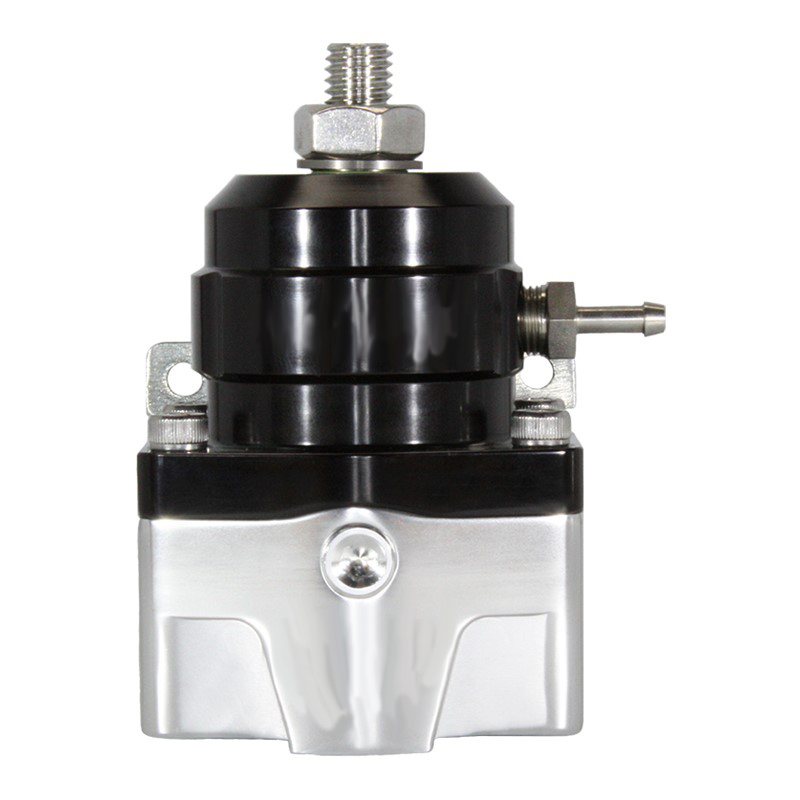

EFI Fuel Bypass Regulator -8 ORB - FP-2015

Our performance EFI regulator is designed for high horsepower applications. It features a high flow design and excellent pressure control and is specifically designed to be the best high pressure and EFI regulator.

Fuel pressure tracks boost at 1:1 ratio

40-75PSI adjustment range (maximum)

1/8" NPT gauge port with plug
2 x -8 ORB inlet ports
1 x -6 ORB return port
5mm Allen adjustment screw with 17mm lock nut
1 x 5/32" barbed vacuum /boost port (1/8" FPT internal thread)
Mounting bracket
Stainless Hardware
